A plottable representing a bar chart in a plot. More...

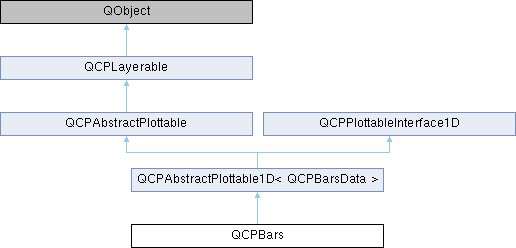

Inheritance diagram for QCPBars:

Public Types
enum	WidthType { wtAbsolute , wtAxisRectRatio , wtPlotCoords }
	Defines the ways the width of the bar can be specified. More...

Public Member Functions
	QCPBars (QCPAxis keyAxis, QCPAxis valueAxis)
	Constructs a bar chart which uses keyAxis as its key axis ("x") and valueAxis as its value axis ("y").

double	width () const

WidthType	widthType () const

QCPBarsGroup *	barsGroup () const

double	baseValue () const

double	stackingGap () const

QCPBars *	barBelow () const
	Returns the bars plottable that is directly below this bars plottable.

QCPBars *	barAbove () const
	Returns the bars plottable that is directly above this bars plottable.

QSharedPointer< QCPBarsDataContainer >	data () const
	Returns a shared pointer to the internal data storage of type QCPBarsDataContainer.

void	setData (QSharedPointer< QCPBarsDataContainer > data)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Replaces the current data container with the provided data container.

void	setData (const QVector< double > &keys, const QVector< double > &values, bool alreadySorted=false)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Replaces the current data with the provided points in keys and values.

void	setWidth (double width)
	Sets the width of the bars.

void	setWidthType (WidthType widthType)
	Sets how the width of the bars is defined.

void	setBarsGroup (QCPBarsGroup *barsGroup)
	Sets to which QCPBarsGroup this QCPBars instance belongs to.

void	setBaseValue (double baseValue)
	Sets the base value of this bars plottable.

void	setStackingGap (double pixels)
	If this bars plottable is stacked on top of another bars plottable (moveAbove), this method allows specifying a distance in pixels, by which the drawn bar rectangles will be separated by the bars below it.

void	addData (const QVector< double > &keys, const QVector< double > &values, bool alreadySorted=false)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Adds the provided points in keys and values to the current data.

void	addData (double key, double value)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Adds the provided data point as key and value to the current data.

void	moveBelow (QCPBars *bars)
	Moves this bars plottable below bars.

void	moveAbove (QCPBars *bars)
	Moves this bars plottable above bars.

virtual QCPDataSelection	selectTestRect (const QRectF &rect, bool onlySelectable) const Q_DECL_OVERRIDE
	Returns a data selection containing all the data points of this plottable which are contained (or hit by) rect.

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE
	Implements a point-selection algorithm assuming the data (accessed via the 1D data interface) is point-like.

virtual QCPRange	getKeyRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth) const Q_DECL_OVERRIDE
	Returns the coordinate range that all data in this plottable span in the key axis dimension.

virtual QCPRange	getValueRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth, const QCPRange &inKeyRange=QCPRange()) const Q_DECL_OVERRIDE
	Returns the coordinate range that the data points in the specified key range (inKeyRange) span in the value axis dimension.

virtual QPointF	dataPixelPosition (int index) const Q_DECL_OVERRIDE
	Returns the pixel position on the widget surface at which the data point at the given index appears.

Public Member Functions inherited from QCPAbstractPlottable1D< QCPBarsData >
	QCPAbstractPlottable1D (QCPAxis keyAxis, QCPAxis valueAxis)
	Forwards keyAxis and valueAxis to the QCPAbstractPlottable constructor and allocates the mDataContainer.

virtual int	dataCount () const Q_DECL_OVERRIDE
	Returns the number of data points of the plottable.

virtual double	dataMainKey (int index) const Q_DECL_OVERRIDE
	Returns the main key of the data point at the given index.

virtual double	dataSortKey (int index) const Q_DECL_OVERRIDE
	Returns the sort key of the data point at the given index.

virtual double	dataMainValue (int index) const Q_DECL_OVERRIDE
	Returns the main value of the data point at the given index.

virtual QCPRange	dataValueRange (int index) const Q_DECL_OVERRIDE
	Returns the value range of the data point at the given index.

virtual QPointF	dataPixelPosition (int index) const Q_DECL_OVERRIDE
	Returns the pixel position on the widget surface at which the data point at the given index appears.

virtual bool	sortKeyIsMainKey () const Q_DECL_OVERRIDE
	Returns whether the sort key (dataSortKey) is identical to the main key (dataMainKey).

virtual QCPDataSelection	selectTestRect (const QRectF &rect, bool onlySelectable) const Q_DECL_OVERRIDE
	Implements a rect-selection algorithm assuming the data (accessed via the 1D data interface) is point-like.

virtual int	findBegin (double sortKey, bool expandedRange=true) const Q_DECL_OVERRIDE
	Returns the index of the data point with a (sort-)key that is equal to, just below, or just above sortKey.

virtual int	findEnd (double sortKey, bool expandedRange=true) const Q_DECL_OVERRIDE
	Returns the index one after the data point with a (sort-)key that is equal to, just above, or just below sortKey.

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE
	Implements a point-selection algorithm assuming the data (accessed via the 1D data interface) is point-like.

virtual QCPPlottableInterface1D *	interface1D () Q_DECL_OVERRIDE
	Returns a QCPPlottableInterface1D pointer to this plottable, providing access to its 1D interface.

Public Member Functions inherited from QCPAbstractPlottable
	QCPAbstractPlottable (QCPAxis keyAxis, QCPAxis valueAxis)
	Constructs an abstract plottable which uses keyAxis as its key axis ("x") and valueAxis as its value axis ("y").

QString	name () const

bool	antialiasedFill () const

bool	antialiasedScatters () const

QPen	pen () const

QBrush	brush () const

QCPAxis *	keyAxis () const

QCPAxis *	valueAxis () const

QCP::SelectionType	selectable () const

bool	selected () const
	Returns true if there are any data points of the plottable currently selected.

QCPDataSelection	selection () const
	Returns a QCPDataSelection encompassing all the data points that are currently selected on this plottable.

QCPSelectionDecorator *	selectionDecorator () const
	Provides access to the selection decorator of this plottable.

void	setName (const QString &name)
	The name is the textual representation of this plottable as it is displayed in the legend (QCPLegend).

void	setAntialiasedFill (bool enabled)
	Sets whether fills of this plottable are drawn antialiased or not.

void	setAntialiasedScatters (bool enabled)
	Sets whether the scatter symbols of this plottable are drawn antialiased or not.

void	setPen (const QPen &pen)
	The pen is used to draw basic lines that make up the plottable representation in the plot.

void	setBrush (const QBrush &brush)
	The brush is used to draw basic fills of the plottable representation in the plot.

void	setKeyAxis (QCPAxis *axis)
	The key axis of a plottable can be set to any axis of a QCustomPlot, as long as it is orthogonal to the plottable's value axis.

void	setValueAxis (QCPAxis *axis)
	The value axis of a plottable can be set to any axis of a QCustomPlot, as long as it is orthogonal to the plottable's key axis.

Q_SLOT void	setSelectable (QCP::SelectionType selectable)
	Sets whether and to which granularity this plottable can be selected.

Q_SLOT void	setSelection (QCPDataSelection selection)
	Sets which data ranges of this plottable are selected.

void	setSelectionDecorator (QCPSelectionDecorator *decorator)
	Use this method to set an own QCPSelectionDecorator (subclass) instance.

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const =0
	This function is used to decide whether a click hits a layerable object or not.

virtual QCPPlottableInterface1D *	interface1D ()
	If this plottable is a one-dimensional plottable, i.e.

virtual QCPRange	getKeyRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth) const =0
	Returns the coordinate range that all data in this plottable span in the key axis dimension.

virtual QCPRange	getValueRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth, const QCPRange &inKeyRange=QCPRange()) const =0
	Returns the coordinate range that the data points in the specified key range (inKeyRange) span in the value axis dimension.

void	coordsToPixels (double key, double value, double &x, double &y) const
	Convenience function for transforming a key/value pair to pixels on the QCustomPlot surface, taking the orientations of the axes associated with this plottable into account (e.g.

const QPointF	coordsToPixels (double key, double value) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Transforms the given key and value to pixel coordinates and returns them in a QPointF.

void	pixelsToCoords (double x, double y, double &key, double &value) const
	Convenience function for transforming a x/y pixel pair on the QCustomPlot surface to plot coordinates, taking the orientations of the axes associated with this plottable into account (e.g.

void	pixelsToCoords (const QPointF &pixelPos, double &key, double &value) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Returns the pixel input pixelPos as plot coordinates key and value.

void	rescaleAxes (bool onlyEnlarge=false) const
	Rescales the key and value axes associated with this plottable to contain all displayed data, so the whole plottable is visible.

void	rescaleKeyAxis (bool onlyEnlarge=false) const
	Rescales the key axis of the plottable so the whole plottable is visible.

void	rescaleValueAxis (bool onlyEnlarge=false, bool inKeyRange=false) const
	Rescales the value axis of the plottable so the whole plottable is visible.

bool	addToLegend (QCPLegend *legend)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Adds this plottable to the specified legend.

bool	addToLegend ()
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Adds this plottable to the legend of the parent QCustomPlot (QCustomPlot::legend).

bool	removeFromLegend (QCPLegend *legend) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Removes the plottable from the specifed legend.

bool	removeFromLegend () const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Removes the plottable from the legend of the parent QCustomPlot.

Public Member Functions inherited from QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)
	Creates a new QCPLayerable instance.

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const
	Returns the parent layerable of this layerable.

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)
	Sets the visibility of this layerable object.

Q_SLOT bool	setLayer (QCPLayer *layer)
	Sets the layer of this layerable object.

bool	setLayer (const QString &layerName)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Sets the layer of this layerable object by name.

void	setAntialiased (bool enabled)
	Sets whether this object will be drawn antialiased or not.

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const
	This function is used to decide whether a click hits a layerable object or not.

bool	realVisibility () const
	Returns whether this layerable is visible, taking the visibility of the layerable parent and the visibility of this layerable's layer into account.

virtual int	dataCount () const =0
	Returns the number of data points of the plottable.

virtual double	dataMainKey (int index) const =0
	Returns the main key of the data point at the given index.

virtual double	dataSortKey (int index) const =0
	Returns the sort key of the data point at the given index.

virtual double	dataMainValue (int index) const =0
	Returns the main value of the data point at the given index.

virtual QCPRange	dataValueRange (int index) const =0
	Returns the value range of the data point at the given index.

virtual QPointF	dataPixelPosition (int index) const =0
	Returns the pixel position on the widget surface at which the data point at the given index appears.

virtual bool	sortKeyIsMainKey () const =0
	Returns whether the sort key (dataSortKey) is identical to the main key (dataMainKey).

virtual QCPDataSelection	selectTestRect (const QRectF &rect, bool onlySelectable) const =0
	Returns a data selection containing all the data points of this plottable which are contained (or hit by) rect.

virtual int	findBegin (double sortKey, bool expandedRange=true) const =0
	Returns the index of the data point with a (sort-)key that is equal to, just below, or just above sortKey.

virtual int	findEnd (double sortKey, bool expandedRange=true) const =0
	Returns the index one after the data point with a (sort-)key that is equal to, just above, or just below sortKey.

Protected Member Functions
virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual void	drawLegendIcon (QCPPainter *painter, const QRectF &rect) const Q_DECL_OVERRIDE

void	getVisibleDataBounds (QCPBarsDataContainer::const_iterator &begin, QCPBarsDataContainer::const_iterator &end) const

QRectF	getBarRect (double key, double value) const

void	getPixelWidth (double key, double &lower, double &upper) const

double	getStackedBaseValue (double key, bool positive) const

Protected Member Functions inherited from QCPAbstractPlottable1D< QCPBarsData >
void	getDataSegments (QList< QCPDataRange > &selectedSegments, QList< QCPDataRange > &unselectedSegments) const
	Splits all data into selected and unselected segments and outputs them via selectedSegments and unselectedSegments, respectively.

void	drawPolyline (QCPPainter *painter, const QVector< QPointF > &lineData) const
	A helper method which draws a line with the passed painter, according to the pixel data in lineData.

Protected Member Functions inherited from QCPAbstractPlottable
virtual QRect	clipRect () const Q_DECL_OVERRIDE

virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE=0

virtual QCP::Interaction	selectionCategory () const Q_DECL_OVERRIDE

void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged) Q_DECL_OVERRIDE

virtual void	deselectEvent (bool *selectionStateChanged) Q_DECL_OVERRIDE

virtual void	drawLegendIcon (QCPPainter *painter, const QRectF &rect) const =0

void	applyFillAntialiasingHint (QCPPainter *painter) const

void	applyScattersAntialiasingHint (QCPPainter *painter) const

Protected Member Functions inherited from QCPLayerable
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual QCP::Interaction	selectionCategory () const

virtual QRect	clipRect () const

virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const =0

virtual void	draw (QCPPainter *painter)=0

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)
	This event gets called when the user presses a mouse button while the cursor is over the layerable.

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)
	This event gets called when the user moves the mouse while holding a mouse button, after this layerable has become the mouse grabber by accepting the preceding mousePressEvent.

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)
	This event gets called when the user releases the mouse button, after this layerable has become the mouse grabber by accepting the preceding mousePressEvent.

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)
	This event gets called when the user presses the mouse button a second time in a double-click, while the cursor is over the layerable.

virtual void	wheelEvent (QWheelEvent *event)
	This event gets called when the user turns the mouse scroll wheel while the cursor is over the layerable.

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Static Protected Member Functions
static void	connectBars (QCPBars lower, QCPBars upper)

Protected Attributes
double	mWidth

WidthType	mWidthType

QCPBarsGroup *	mBarsGroup

double	mBaseValue

double	mStackingGap

QPointer< QCPBars >	mBarBelow

QPointer< QCPBars >	mBarAbove

Protected Attributes inherited from QCPAbstractPlottable1D< QCPBarsData >
QSharedPointer< QCPDataContainer< QCPBarsData > >	mDataContainer

Protected Attributes inherited from QCPAbstractPlottable
QString	mName

bool	mAntialiasedFill

bool	mAntialiasedScatters

QPen	mPen

QBrush	mBrush

QPointer< QCPAxis >	mKeyAxis

QPointer< QCPAxis >	mValueAxis

QCP::SelectionType	mSelectable

QCPDataSelection	mSelection

QCPSelectionDecorator *	mSelectionDecorator

Protected Attributes inherited from QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Friends
class	QCustomPlot

class	QCPLegend

class	QCPBarsGroup

Additional Inherited Members
Signals inherited from QCPAbstractPlottable
void	selectionChanged (bool selected)
	This signal is emitted when the selection state of this plottable has changed, either by user interaction or by a direct call to setSelection.

void	selectionChanged (const QCPDataSelection &selection)
	This signal is emitted when the selection state of this plottable has changed, either by user interaction or by a direct call to setSelection.

void	selectableChanged (QCP::SelectionType selectable)
	This signal is emitted when the selectability of this plottable has changed.

Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)
	This signal is emitted when the layer of this layerable changes, i.e.

Detailed Description

A plottable representing a bar chart in a plot.

To plot data, assign it with the setData or addData functions.

Changing the appearance

The appearance of the bars is determined by the pen and the brush (setPen, setBrush). The width of the individual bars can be controlled with setWidthType and setWidth.

Bar charts are stackable. This means, two QCPBars plottables can be placed on top of each other (see QCPBars::moveAbove). So when two bars are at the same key position, they will appear stacked.

If you would like to group multiple QCPBars plottables together so they appear side by side as shown below, use QCPBarsGroup.

Usage

Like all data representing objects in QCustomPlot, the QCPBars is a plottable (QCPAbstractPlottable). So the plottable-interface of QCustomPlot applies (QCustomPlot::plottable, QCustomPlot::removePlottable, etc.)

Usually, you first create an instance:

which registers it with the QCustomPlot instance of the passed axes. Note that this QCustomPlot instance takes ownership of the plottable, so do not delete it manually but use QCustomPlot::removePlottable() instead. The newly created plottable can be modified, e.g.:

Member Enumeration Documentation

◆ WidthType

enum QCPBars::WidthType

Defines the ways the width of the bar can be specified.

Thus it defines what the number passed to setWidth actually means.

See also: setWidthType, setWidth

Enumerator
wtAbsolute	Bar width is in absolute pixels.
wtAxisRectRatio	Bar width is given by a fraction of the axis rect size.
wtPlotCoords	Bar width is in key coordinates and thus scales with the key axis range.

Constructor & Destructor Documentation

◆ QCPBars()

QCPBars::QCPBars	(	QCPAxis *	keyAxis,
		QCPAxis *	valueAxis
	)

explicit

Constructs a bar chart which uses keyAxis as its key axis ("x") and valueAxis as its value axis ("y").

keyAxis and valueAxis must reside in the same QCustomPlot instance and not have the same orientation. If either of these restrictions is violated, a corresponding message is printed to the debug output (qDebug), the construction is not aborted, though.

The created QCPBars is automatically registered with the QCustomPlot instance inferred from keyAxis. This QCustomPlot instance takes ownership of the QCPBars, so do not delete it manually but use QCustomPlot::removePlottable() instead.

Member Function Documentation

◆ addData() [1/2]

void QCPBars::addData	(	const QVector< double > &	keys,
		const QVector< double > &	values,
		bool	alreadySorted = `false`
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Adds the provided points in keys and values to the current data.

The provided vectors should have equal length. Else, the number of added points will be the size of the smallest vector.

If you can guarantee that the passed data points are sorted by keys in ascending order, you can set alreadySorted to true, to improve performance by saving a sorting run.

Alternatively, you can also access and modify the data directly via the data method, which returns a pointer to the internal data container.

◆ addData() [2/2]

void QCPBars::addData	(	double	key,
		double	value
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Adds the provided data point as key and value to the current data.

Alternatively, you can also access and modify the data directly via the data method, which returns a pointer to the internal data container.

◆ barAbove()

QCPBars * QCPBars::barAbove ( ) const

inline

Returns the bars plottable that is directly above this bars plottable.

If there is no such plottable, returns 0.

See also: barBelow, moveBelow, moveAbove

◆ barBelow()

QCPBars * QCPBars::barBelow ( ) const

inline

Returns the bars plottable that is directly below this bars plottable.

If there is no such plottable, returns 0.

See also: barAbove, moveBelow, moveAbove

◆ data()

QSharedPointer< QCPBarsDataContainer > QCPBars::data ( ) const

inline

Returns a shared pointer to the internal data storage of type QCPBarsDataContainer.

You may use it to directly manipulate the data, which may be more convenient and faster than using the regular setData or addData methods.

◆ dataPixelPosition()

QPointF QCPBars::dataPixelPosition ( int index ) const

virtual

Returns the pixel position on the widget surface at which the data point at the given index appears.

Usually this corresponds to the point of dataMainKey/ dataMainValue, in pixel coordinates. However, depending on the plottable, this might be a different apparent position than just a coord-to-pixel transform of those values. For example, QCPBars apparent data values can be shifted depending on their stacking, bar grouping or configured base value.

Reimplemented from QCPAbstractPlottable1D< QCPBarsData >.

◆ draw()

void QCPBars::draw ( QCPPainter * painter )

protectedvirtual

Implements QCPAbstractPlottable.

◆ drawLegendIcon()

void QCPBars::drawLegendIcon	(	QCPPainter *	painter,
		const QRectF &	rect
	)		const

protectedvirtual

Implements QCPAbstractPlottable.

◆ getKeyRange()

QCPRange QCPBars::getKeyRange	(	bool &	foundRange,
		QCP::SignDomain	inSignDomain = `QCP::sdBoth`
	)		const

virtual

Returns the coordinate range that all data in this plottable span in the key axis dimension.

For logarithmic plots, one can set inSignDomain to either QCP::sdNegative or QCP::sdPositive in order to restrict the returned range to that sign domain. E.g. when only negative range is wanted, set inSignDomain to QCP::sdNegative and all positive points will be ignored for range calculation. For no restriction, just set inSignDomain to QCP::sdBoth (default). foundRange is an output parameter that indicates whether a range could be found or not. If this is false, you shouldn't use the returned range (e.g. no points in data).

Note that foundRange is not the same as QCPRange::validRange, since the range returned by this function may have size zero (e.g. when there is only one data point). In this case foundRange would return true, but the returned range is not a valid range in terms of QCPRange::validRange.

See also: rescaleAxes, getValueRange

Implements QCPAbstractPlottable.

◆ getValueRange()

QCPRange QCPBars::getValueRange	(	bool &	foundRange,
		QCP::SignDomain	inSignDomain = `QCP::sdBoth`,
		const QCPRange &	inKeyRange = `QCPRange()`
	)		const

virtual

Returns the coordinate range that the data points in the specified key range (inKeyRange) span in the value axis dimension.

For logarithmic plots, one can set inSignDomain to either QCP::sdNegative or QCP::sdPositive in order to restrict the returned range to that sign domain. E.g. when only negative range is wanted, set inSignDomain to QCP::sdNegative and all positive points will be ignored for range calculation. For no restriction, just set inSignDomain to QCP::sdBoth (default). foundRange is an output parameter that indicates whether a range could be found or not. If this is false, you shouldn't use the returned range (e.g. no points in data).

If inKeyRange has both lower and upper bound set to zero (is equal to QCPRange()), all data points are considered, without any restriction on the keys.

Note that foundRange is not the same as QCPRange::validRange, since the range returned by this function may have size zero (e.g. when there is only one data point). In this case foundRange would return true, but the returned range is not a valid range in terms of QCPRange::validRange.

See also: rescaleAxes, getKeyRange

Implements QCPAbstractPlottable.

◆ moveAbove()

void QCPBars::moveAbove ( QCPBars * bars )

Moves this bars plottable above bars.

In other words, the bars of this plottable will appear above the bars of bars. The move target bars must use the same key and value axis as this plottable.

Inserting into and removing from existing bar stacking is handled gracefully. If bars already has a bars object above itself, this bars object is inserted between the two. If this bars object is already between two other bars, the two other bars will be stacked on top of each other after the operation.

To remove this bars plottable from any stacking, set bars to 0.

See also: moveBelow, barBelow, barAbove

◆ moveBelow()

void QCPBars::moveBelow ( QCPBars * bars )

Moves this bars plottable below bars.

In other words, the bars of this plottable will appear below the bars of bars. The move target bars must use the same key and value axis as this plottable.

Inserting into and removing from existing bar stacking is handled gracefully. If bars already has a bars object below itself, this bars object is inserted between the two. If this bars object is already between two other bars, the two other bars will be stacked on top of each other after the operation.

To remove this bars plottable from any stacking, set bars to 0.

See also: moveBelow, barAbove, barBelow

◆ selectTest()

double QCPBars::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

Implements a point-selection algorithm assuming the data (accessed via the 1D data interface) is point-like.

Most subclasses will want to reimplement this method again, to provide a more accurate hit test based on the true data visualization geometry.

\seebaseclassmethod

Reimplemented from QCPAbstractPlottable1D< QCPBarsData >.

◆ selectTestRect()

QCPDataSelection QCPBars::selectTestRect	(	const QRectF &	rect,
		bool	onlySelectable
	)		const

virtual

Returns a data selection containing all the data points of this plottable which are contained (or hit by) rect.

This is used mainly in the selection rect interaction for data selection (data selection mechanism).

If onlySelectable is true, an empty QCPDataSelection is returned if this plottable is not selectable (i.e. if QCPAbstractPlottable::setSelectable is QCP::stNone).

Note: rect must be a normalized rect (positive or zero width and height). This is especially important when using the rect of QCPSelectionRect::accepted, which is not necessarily normalized. Use QRect::normalized() when passing a rect which might not be normalized.

Reimplemented from QCPAbstractPlottable1D< QCPBarsData >.

◆ setBarsGroup()

void QCPBars::setBarsGroup ( QCPBarsGroup * barsGroup )

Sets to which QCPBarsGroup this QCPBars instance belongs to.

Alternatively, you can also use QCPBarsGroup::append.

To remove this QCPBars from any group, set barsGroup to 0.

◆ setBaseValue()

void QCPBars::setBaseValue ( double baseValue )

Sets the base value of this bars plottable.

The base value defines where on the value coordinate the bars start. How far the bars extend from the base value is given by their individual value data. For example, if the base value is set to 1, a bar with data value 2 will have its lowest point at value coordinate 1 and highest point at 3.

For stacked bars, only the base value of the bottom-most QCPBars has meaning.

The default base value is 0.

◆ setData() [1/2]

void QCPBars::setData	(	const QVector< double > &	keys,
		const QVector< double > &	values,
		bool	alreadySorted = `false`
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Replaces the current data with the provided points in keys and values.

The provided vectors should have equal length. Else, the number of added points will be the size of the smallest vector.

If you can guarantee that the passed data points are sorted by keys in ascending order, you can set alreadySorted to true, to improve performance by saving a sorting run.

See also: addData

◆ setData() [2/2]

void QCPBars::setData ( QSharedPointer< QCPBarsDataContainer > data )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Replaces the current data container with the provided data container.

Since a QSharedPointer is used, multiple QCPBars may share the same data container safely. Modifying the data in the container will then affect all bars that share the container. Sharing can be achieved by simply exchanging the data containers wrapped in shared pointers:

If you do not wish to share containers, but create a copy from an existing container, rather use the QCPDataContainer<DataType>::set method on the bar's data container directly:

See also: addData

◆ setWidth()

void QCPBars::setWidth ( double width )

Sets the width of the bars.

How the number passed as width is interpreted (e.g. screen pixels, plot coordinates,...), depends on the currently set width type, see setWidthType and WidthType.

◆ setWidthType()

void QCPBars::setWidthType ( QCPBars::WidthType widthType )

Sets how the width of the bars is defined.

See the documentation of WidthType for an explanation of the possible values for widthType.

The default value is wtPlotCoords.

See also: setWidth

The documentation for this class was generated from the following files:

qcustomplot.h
qcustomplot.cpp

Public Types

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Changing the appearance

Usage

Member Enumeration Documentation

◆ WidthType

Constructor & Destructor Documentation

◆ QCPBars()

Member Function Documentation

◆ addData() [1/2]

◆ addData() [2/2]

◆ barAbove()

◆ barBelow()

◆ data()

◆ dataPixelPosition()

◆ draw()

◆ drawLegendIcon()

◆ getKeyRange()

◆ getValueRange()

◆ moveAbove()

◆ moveBelow()

◆ selectTest()

◆ selectTestRect()

◆ setBarsGroup()

◆ setBaseValue()

◆ setData() [1/2]

◆ setData() [2/2]

◆ setWidth()

◆ setWidthType()
