A plottable representing a single statistical box in a plot. More...

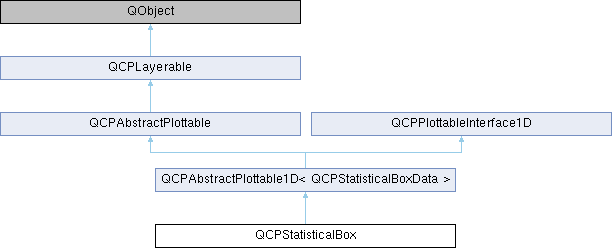

Inheritance diagram for QCPStatisticalBox:

Public Member Functions
	QCPStatisticalBox (QCPAxis keyAxis, QCPAxis valueAxis)
	Constructs a statistical box which uses keyAxis as its key axis ("x") and valueAxis as its value axis ("y").

QSharedPointer< QCPStatisticalBoxDataContainer >	data () const
	Returns a shared pointer to the internal data storage of type QCPStatisticalBoxDataContainer.

double	width () const

double	whiskerWidth () const

QPen	whiskerPen () const

QPen	whiskerBarPen () const

bool	whiskerAntialiased () const

QPen	medianPen () const

QCPScatterStyle	outlierStyle () const

void	setData (QSharedPointer< QCPStatisticalBoxDataContainer > data)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Replaces the current data container with the provided data container.

void	setData (const QVector< double > &keys, const QVector< double > &minimum, const QVector< double > &lowerQuartile, const QVector< double > &median, const QVector< double > &upperQuartile, const QVector< double > &maximum, bool alreadySorted=false)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Replaces the current data with the provided points in keys, minimum, lowerQuartile, median, upperQuartile and maximum.

void	setWidth (double width)
	Sets the width of the boxes in key coordinates.

void	setWhiskerWidth (double width)
	Sets the width of the whiskers in key coordinates.

void	setWhiskerPen (const QPen &pen)
	Sets the pen used for drawing the whisker backbone.

void	setWhiskerBarPen (const QPen &pen)
	Sets the pen used for drawing the whisker bars.

void	setWhiskerAntialiased (bool enabled)
	Sets whether the statistical boxes whiskers are drawn with antialiasing or not.

void	setMedianPen (const QPen &pen)
	Sets the pen used for drawing the median indicator line inside the statistical boxes.

void	setOutlierStyle (const QCPScatterStyle &style)
	Sets the appearance of the outlier data points.

void	addData (const QVector< double > &keys, const QVector< double > &minimum, const QVector< double > &lowerQuartile, const QVector< double > &median, const QVector< double > &upperQuartile, const QVector< double > &maximum, bool alreadySorted=false)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Adds the provided points in keys, minimum, lowerQuartile, median, upperQuartile and maximum to the current data.

void	addData (double key, double minimum, double lowerQuartile, double median, double upperQuartile, double maximum, const QVector< double > &outliers=QVector< double >())
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Adds the provided data point as key, minimum, lowerQuartile, median, upperQuartile and maximum to the current data.

virtual QCPDataSelection	selectTestRect (const QRectF &rect, bool onlySelectable) const Q_DECL_OVERRIDE
	Returns a data selection containing all the data points of this plottable which are contained (or hit by) rect.

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE
	Implements a point-selection algorithm assuming the data (accessed via the 1D data interface) is point-like.

virtual QCPRange	getKeyRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth) const Q_DECL_OVERRIDE
	Returns the coordinate range that all data in this plottable span in the key axis dimension.

virtual QCPRange	getValueRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth, const QCPRange &inKeyRange=QCPRange()) const Q_DECL_OVERRIDE
	Returns the coordinate range that the data points in the specified key range (inKeyRange) span in the value axis dimension.

Public Member Functions inherited from QCPAbstractPlottable1D< QCPStatisticalBoxData >
	QCPAbstractPlottable1D (QCPAxis keyAxis, QCPAxis valueAxis)
	Forwards keyAxis and valueAxis to the QCPAbstractPlottable constructor and allocates the mDataContainer.

virtual int	dataCount () const Q_DECL_OVERRIDE
	Returns the number of data points of the plottable.

virtual double	dataMainKey (int index) const Q_DECL_OVERRIDE
	Returns the main key of the data point at the given index.

virtual double	dataSortKey (int index) const Q_DECL_OVERRIDE
	Returns the sort key of the data point at the given index.

virtual double	dataMainValue (int index) const Q_DECL_OVERRIDE
	Returns the main value of the data point at the given index.

virtual QCPRange	dataValueRange (int index) const Q_DECL_OVERRIDE
	Returns the value range of the data point at the given index.

virtual QPointF	dataPixelPosition (int index) const Q_DECL_OVERRIDE
	Returns the pixel position on the widget surface at which the data point at the given index appears.

virtual bool	sortKeyIsMainKey () const Q_DECL_OVERRIDE
	Returns whether the sort key (dataSortKey) is identical to the main key (dataMainKey).

virtual QCPDataSelection	selectTestRect (const QRectF &rect, bool onlySelectable) const Q_DECL_OVERRIDE
	Implements a rect-selection algorithm assuming the data (accessed via the 1D data interface) is point-like.

virtual int	findBegin (double sortKey, bool expandedRange=true) const Q_DECL_OVERRIDE
	Returns the index of the data point with a (sort-)key that is equal to, just below, or just above sortKey.

virtual int	findEnd (double sortKey, bool expandedRange=true) const Q_DECL_OVERRIDE
	Returns the index one after the data point with a (sort-)key that is equal to, just above, or just below sortKey.

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE
	Implements a point-selection algorithm assuming the data (accessed via the 1D data interface) is point-like.

virtual QCPPlottableInterface1D *	interface1D () Q_DECL_OVERRIDE
	Returns a QCPPlottableInterface1D pointer to this plottable, providing access to its 1D interface.

Public Member Functions inherited from QCPAbstractPlottable
	QCPAbstractPlottable (QCPAxis keyAxis, QCPAxis valueAxis)
	Constructs an abstract plottable which uses keyAxis as its key axis ("x") and valueAxis as its value axis ("y").

QString	name () const

bool	antialiasedFill () const

bool	antialiasedScatters () const

QPen	pen () const

QBrush	brush () const

QCPAxis *	keyAxis () const

QCPAxis *	valueAxis () const

QCP::SelectionType	selectable () const

bool	selected () const
	Returns true if there are any data points of the plottable currently selected.

QCPDataSelection	selection () const
	Returns a QCPDataSelection encompassing all the data points that are currently selected on this plottable.

QCPSelectionDecorator *	selectionDecorator () const
	Provides access to the selection decorator of this plottable.

void	setName (const QString &name)
	The name is the textual representation of this plottable as it is displayed in the legend (QCPLegend).

void	setAntialiasedFill (bool enabled)
	Sets whether fills of this plottable are drawn antialiased or not.

void	setAntialiasedScatters (bool enabled)
	Sets whether the scatter symbols of this plottable are drawn antialiased or not.

void	setPen (const QPen &pen)
	The pen is used to draw basic lines that make up the plottable representation in the plot.

void	setBrush (const QBrush &brush)
	The brush is used to draw basic fills of the plottable representation in the plot.

void	setKeyAxis (QCPAxis *axis)
	The key axis of a plottable can be set to any axis of a QCustomPlot, as long as it is orthogonal to the plottable's value axis.

void	setValueAxis (QCPAxis *axis)
	The value axis of a plottable can be set to any axis of a QCustomPlot, as long as it is orthogonal to the plottable's key axis.

Q_SLOT void	setSelectable (QCP::SelectionType selectable)
	Sets whether and to which granularity this plottable can be selected.

Q_SLOT void	setSelection (QCPDataSelection selection)
	Sets which data ranges of this plottable are selected.

void	setSelectionDecorator (QCPSelectionDecorator *decorator)
	Use this method to set an own QCPSelectionDecorator (subclass) instance.

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const =0
	This function is used to decide whether a click hits a layerable object or not.

virtual QCPPlottableInterface1D *	interface1D ()
	If this plottable is a one-dimensional plottable, i.e.

virtual QCPRange	getKeyRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth) const =0
	Returns the coordinate range that all data in this plottable span in the key axis dimension.

virtual QCPRange	getValueRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth, const QCPRange &inKeyRange=QCPRange()) const =0
	Returns the coordinate range that the data points in the specified key range (inKeyRange) span in the value axis dimension.

void	coordsToPixels (double key, double value, double &x, double &y) const
	Convenience function for transforming a key/value pair to pixels on the QCustomPlot surface, taking the orientations of the axes associated with this plottable into account (e.g.

const QPointF	coordsToPixels (double key, double value) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Transforms the given key and value to pixel coordinates and returns them in a QPointF.

void	pixelsToCoords (double x, double y, double &key, double &value) const
	Convenience function for transforming a x/y pixel pair on the QCustomPlot surface to plot coordinates, taking the orientations of the axes associated with this plottable into account (e.g.

void	pixelsToCoords (const QPointF &pixelPos, double &key, double &value) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Returns the pixel input pixelPos as plot coordinates key and value.

void	rescaleAxes (bool onlyEnlarge=false) const
	Rescales the key and value axes associated with this plottable to contain all displayed data, so the whole plottable is visible.

void	rescaleKeyAxis (bool onlyEnlarge=false) const
	Rescales the key axis of the plottable so the whole plottable is visible.

void	rescaleValueAxis (bool onlyEnlarge=false, bool inKeyRange=false) const
	Rescales the value axis of the plottable so the whole plottable is visible.

bool	addToLegend (QCPLegend *legend)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Adds this plottable to the specified legend.

bool	addToLegend ()
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Adds this plottable to the legend of the parent QCustomPlot (QCustomPlot::legend).

bool	removeFromLegend (QCPLegend *legend) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Removes the plottable from the specifed legend.

bool	removeFromLegend () const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Removes the plottable from the legend of the parent QCustomPlot.

Public Member Functions inherited from QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)
	Creates a new QCPLayerable instance.

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const
	Returns the parent layerable of this layerable.

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)
	Sets the visibility of this layerable object.

Q_SLOT bool	setLayer (QCPLayer *layer)
	Sets the layer of this layerable object.

bool	setLayer (const QString &layerName)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Sets the layer of this layerable object by name.

void	setAntialiased (bool enabled)
	Sets whether this object will be drawn antialiased or not.

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const
	This function is used to decide whether a click hits a layerable object or not.

bool	realVisibility () const
	Returns whether this layerable is visible, taking the visibility of the layerable parent and the visibility of this layerable's layer into account.

virtual int	dataCount () const =0
	Returns the number of data points of the plottable.

virtual double	dataMainKey (int index) const =0
	Returns the main key of the data point at the given index.

virtual double	dataSortKey (int index) const =0
	Returns the sort key of the data point at the given index.

virtual double	dataMainValue (int index) const =0
	Returns the main value of the data point at the given index.

virtual QCPRange	dataValueRange (int index) const =0
	Returns the value range of the data point at the given index.

virtual QPointF	dataPixelPosition (int index) const =0
	Returns the pixel position on the widget surface at which the data point at the given index appears.

virtual bool	sortKeyIsMainKey () const =0
	Returns whether the sort key (dataSortKey) is identical to the main key (dataMainKey).

virtual QCPDataSelection	selectTestRect (const QRectF &rect, bool onlySelectable) const =0
	Returns a data selection containing all the data points of this plottable which are contained (or hit by) rect.

virtual int	findBegin (double sortKey, bool expandedRange=true) const =0
	Returns the index of the data point with a (sort-)key that is equal to, just below, or just above sortKey.

virtual int	findEnd (double sortKey, bool expandedRange=true) const =0
	Returns the index one after the data point with a (sort-)key that is equal to, just above, or just below sortKey.

Protected Member Functions
virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual void	drawLegendIcon (QCPPainter *painter, const QRectF &rect) const Q_DECL_OVERRIDE

virtual void	drawStatisticalBox (QCPPainter *painter, QCPStatisticalBoxDataContainer::const_iterator it, const QCPScatterStyle &outlierStyle) const
	Draws the graphical representation of a single statistical box with the data given by the iterator it with the provided painter.

void	getVisibleDataBounds (QCPStatisticalBoxDataContainer::const_iterator &begin, QCPStatisticalBoxDataContainer::const_iterator &end) const

QRectF	getQuartileBox (QCPStatisticalBoxDataContainer::const_iterator it) const

QVector< QLineF >	getWhiskerBackboneLines (QCPStatisticalBoxDataContainer::const_iterator it) const

QVector< QLineF >	getWhiskerBarLines (QCPStatisticalBoxDataContainer::const_iterator it) const

Protected Member Functions inherited from QCPAbstractPlottable1D< QCPStatisticalBoxData >
void	getDataSegments (QList< QCPDataRange > &selectedSegments, QList< QCPDataRange > &unselectedSegments) const
	Splits all data into selected and unselected segments and outputs them via selectedSegments and unselectedSegments, respectively.

void	drawPolyline (QCPPainter *painter, const QVector< QPointF > &lineData) const
	A helper method which draws a line with the passed painter, according to the pixel data in lineData.

Protected Member Functions inherited from QCPAbstractPlottable
virtual QRect	clipRect () const Q_DECL_OVERRIDE

virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE=0

virtual QCP::Interaction	selectionCategory () const Q_DECL_OVERRIDE

void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged) Q_DECL_OVERRIDE

virtual void	deselectEvent (bool *selectionStateChanged) Q_DECL_OVERRIDE

virtual void	drawLegendIcon (QCPPainter *painter, const QRectF &rect) const =0

void	applyFillAntialiasingHint (QCPPainter *painter) const

void	applyScattersAntialiasingHint (QCPPainter *painter) const

Protected Member Functions inherited from QCPLayerable
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual QCP::Interaction	selectionCategory () const

virtual QRect	clipRect () const

virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const =0

virtual void	draw (QCPPainter *painter)=0

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)
	This event gets called when the user presses a mouse button while the cursor is over the layerable.

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)
	This event gets called when the user moves the mouse while holding a mouse button, after this layerable has become the mouse grabber by accepting the preceding mousePressEvent.

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)
	This event gets called when the user releases the mouse button, after this layerable has become the mouse grabber by accepting the preceding mousePressEvent.

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)
	This event gets called when the user presses the mouse button a second time in a double-click, while the cursor is over the layerable.

virtual void	wheelEvent (QWheelEvent *event)
	This event gets called when the user turns the mouse scroll wheel while the cursor is over the layerable.

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Protected Attributes
double	mWidth

double	mWhiskerWidth

QPen	mWhiskerPen

QPen	mWhiskerBarPen

bool	mWhiskerAntialiased

QPen	mMedianPen

QCPScatterStyle	mOutlierStyle

Protected Attributes inherited from QCPAbstractPlottable1D< QCPStatisticalBoxData >
QSharedPointer< QCPDataContainer< QCPStatisticalBoxData > >	mDataContainer

Protected Attributes inherited from QCPAbstractPlottable
QString	mName

bool	mAntialiasedFill

bool	mAntialiasedScatters

QPen	mPen

QBrush	mBrush

QPointer< QCPAxis >	mKeyAxis

QPointer< QCPAxis >	mValueAxis

QCP::SelectionType	mSelectable

QCPDataSelection	mSelection

QCPSelectionDecorator *	mSelectionDecorator

Protected Attributes inherited from QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Friends
class	QCustomPlot

class	QCPLegend

Additional Inherited Members
Signals inherited from QCPAbstractPlottable
void	selectionChanged (bool selected)
	This signal is emitted when the selection state of this plottable has changed, either by user interaction or by a direct call to setSelection.

void	selectionChanged (const QCPDataSelection &selection)
	This signal is emitted when the selection state of this plottable has changed, either by user interaction or by a direct call to setSelection.

void	selectableChanged (QCP::SelectionType selectable)
	This signal is emitted when the selectability of this plottable has changed.

Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)
	This signal is emitted when the layer of this layerable changes, i.e.

Detailed Description

A plottable representing a single statistical box in a plot.

To plot data, assign it with the setData or addData functions. Alternatively, you can also access and modify the data via the data method, which returns a pointer to the internal QCPStatisticalBoxDataContainer.

Additionally each data point can itself have a list of outliers, drawn as scatter points at the key coordinate of the respective statistical box data point. They can either be set by using the respective addData method or accessing the individual data points through data, and setting the QVector<double> outliers of the data points directly.

Changing the appearance

The appearance of each data point box, ranging from the lower to the upper quartile, is controlled via setPen and setBrush. You may change the width of the boxes with setWidth in plot coordinates.

Each data point's visual representation also consists of two whiskers. Whiskers are the lines which reach from the upper quartile to the maximum, and from the lower quartile to the minimum. The appearance of the whiskers can be modified with: setWhiskerPen, setWhiskerBarPen, setWhiskerWidth. The whisker width is the width of the bar perpendicular to the whisker at the top (for maximum) and bottom (for minimum). If the whisker pen is changed, make sure to set the capStyle to Qt::FlatCap. Otherwise the backbone line might exceed the whisker bars by a few pixels due to the pen cap being not perfectly flat.

The median indicator line inside the box has its own pen, setMedianPen.

The outlier data points are drawn as normal scatter points. Their look can be controlled with setOutlierStyle

Usage

Like all data representing objects in QCustomPlot, the QCPStatisticalBox is a plottable (QCPAbstractPlottable). So the plottable-interface of QCustomPlot applies (QCustomPlot::plottable, QCustomPlot::removePlottable, etc.)

Usually, you first create an instance:

which registers it with the QCustomPlot instance of the passed axes. Note that this QCustomPlot instance takes ownership of the plottable, so do not delete it manually but use QCustomPlot::removePlottable() instead. The newly created plottable can be modified, e.g.:

Constructor & Destructor Documentation

◆ QCPStatisticalBox()

QCPStatisticalBox::QCPStatisticalBox	(	QCPAxis *	keyAxis,
		QCPAxis *	valueAxis
	)

explicit

Constructs a statistical box which uses keyAxis as its key axis ("x") and valueAxis as its value axis ("y").

keyAxis and valueAxis must reside in the same QCustomPlot instance and not have the same orientation. If either of these restrictions is violated, a corresponding message is printed to the debug output (qDebug), the construction is not aborted, though.

The created QCPStatisticalBox is automatically registered with the QCustomPlot instance inferred from keyAxis. This QCustomPlot instance takes ownership of the QCPStatisticalBox, so do not delete it manually but use QCustomPlot::removePlottable() instead.

Member Function Documentation

◆ addData() [1/2]

void QCPStatisticalBox::addData	(	const QVector< double > &	keys,
		const QVector< double > &	minimum,
		const QVector< double > &	lowerQuartile,
		const QVector< double > &	median,
		const QVector< double > &	upperQuartile,
		const QVector< double > &	maximum,
		bool	alreadySorted = `false`
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Adds the provided points in keys, minimum, lowerQuartile, median, upperQuartile and maximum to the current data.

The provided vectors should have equal length. Else, the number of added points will be the size of the smallest vector.

If you can guarantee that the passed data points are sorted by keys in ascending order, you can set alreadySorted to true, to improve performance by saving a sorting run.

Alternatively, you can also access and modify the data directly via the data method, which returns a pointer to the internal data container.

◆ addData() [2/2]

void QCPStatisticalBox::addData	(	double	key,
		double	minimum,
		double	lowerQuartile,
		double	median,
		double	upperQuartile,
		double	maximum,
		const QVector< double > &	outliers = `QVector<double>()`
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Adds the provided data point as key, minimum, lowerQuartile, median, upperQuartile and maximum to the current data.

Alternatively, you can also access and modify the data directly via the data method, which returns a pointer to the internal data container.

◆ data()

QSharedPointer< QCPStatisticalBoxDataContainer > QCPStatisticalBox::data ( ) const

inline

Returns a shared pointer to the internal data storage of type QCPStatisticalBoxDataContainer.

You may use it to directly manipulate the data, which may be more convenient and faster than using the regular setData or addData methods.

◆ draw()

void QCPStatisticalBox::draw ( QCPPainter * painter )

protectedvirtual

Implements QCPAbstractPlottable.

◆ drawLegendIcon()

void QCPStatisticalBox::drawLegendIcon	(	QCPPainter *	painter,
		const QRectF &	rect
	)		const

protectedvirtual

Implements QCPAbstractPlottable.

◆ drawStatisticalBox()

void QCPStatisticalBox::drawStatisticalBox	(	QCPPainter *	painter,
		QCPStatisticalBoxDataContainer::const_iterator	it,
		const QCPScatterStyle &	outlierStyle
	)		const

protectedvirtual

Draws the graphical representation of a single statistical box with the data given by the iterator it with the provided painter.

If the statistical box has a set of outlier data points, they are drawn with outlierStyle.

See also: getQuartileBox, getWhiskerBackboneLines, getWhiskerBarLines

◆ getKeyRange()

QCPRange QCPStatisticalBox::getKeyRange	(	bool &	foundRange,
		QCP::SignDomain	inSignDomain = `QCP::sdBoth`
	)		const

virtual

Returns the coordinate range that all data in this plottable span in the key axis dimension.

For logarithmic plots, one can set inSignDomain to either QCP::sdNegative or QCP::sdPositive in order to restrict the returned range to that sign domain. E.g. when only negative range is wanted, set inSignDomain to QCP::sdNegative and all positive points will be ignored for range calculation. For no restriction, just set inSignDomain to QCP::sdBoth (default). foundRange is an output parameter that indicates whether a range could be found or not. If this is false, you shouldn't use the returned range (e.g. no points in data).

Note that foundRange is not the same as QCPRange::validRange, since the range returned by this function may have size zero (e.g. when there is only one data point). In this case foundRange would return true, but the returned range is not a valid range in terms of QCPRange::validRange.

See also: rescaleAxes, getValueRange

Implements QCPAbstractPlottable.

◆ getValueRange()

QCPRange QCPStatisticalBox::getValueRange	(	bool &	foundRange,
		QCP::SignDomain	inSignDomain = `QCP::sdBoth`,
		const QCPRange &	inKeyRange = `QCPRange()`
	)		const

virtual

Returns the coordinate range that the data points in the specified key range (inKeyRange) span in the value axis dimension.

For logarithmic plots, one can set inSignDomain to either QCP::sdNegative or QCP::sdPositive in order to restrict the returned range to that sign domain. E.g. when only negative range is wanted, set inSignDomain to QCP::sdNegative and all positive points will be ignored for range calculation. For no restriction, just set inSignDomain to QCP::sdBoth (default). foundRange is an output parameter that indicates whether a range could be found or not. If this is false, you shouldn't use the returned range (e.g. no points in data).

If inKeyRange has both lower and upper bound set to zero (is equal to QCPRange()), all data points are considered, without any restriction on the keys.

Note that foundRange is not the same as QCPRange::validRange, since the range returned by this function may have size zero (e.g. when there is only one data point). In this case foundRange would return true, but the returned range is not a valid range in terms of QCPRange::validRange.

See also: rescaleAxes, getKeyRange

Implements QCPAbstractPlottable.

◆ selectTest()

double QCPStatisticalBox::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

Implements a point-selection algorithm assuming the data (accessed via the 1D data interface) is point-like.

Most subclasses will want to reimplement this method again, to provide a more accurate hit test based on the true data visualization geometry.

\seebaseclassmethod

Reimplemented from QCPAbstractPlottable1D< QCPStatisticalBoxData >.

◆ selectTestRect()

QCPDataSelection QCPStatisticalBox::selectTestRect	(	const QRectF &	rect,
		bool	onlySelectable
	)		const

virtual

Returns a data selection containing all the data points of this plottable which are contained (or hit by) rect.

This is used mainly in the selection rect interaction for data selection (data selection mechanism).

If onlySelectable is true, an empty QCPDataSelection is returned if this plottable is not selectable (i.e. if QCPAbstractPlottable::setSelectable is QCP::stNone).

Note: rect must be a normalized rect (positive or zero width and height). This is especially important when using the rect of QCPSelectionRect::accepted, which is not necessarily normalized. Use QRect::normalized() when passing a rect which might not be normalized.

Reimplemented from QCPAbstractPlottable1D< QCPStatisticalBoxData >.

◆ setData() [1/2]

void QCPStatisticalBox::setData	(	const QVector< double > &	keys,
		const QVector< double > &	minimum,
		const QVector< double > &	lowerQuartile,
		const QVector< double > &	median,
		const QVector< double > &	upperQuartile,
		const QVector< double > &	maximum,
		bool	alreadySorted = `false`
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Replaces the current data with the provided points in keys, minimum, lowerQuartile, median, upperQuartile and maximum.

The provided vectors should have equal length. Else, the number of added points will be the size of the smallest vector.

If you can guarantee that the passed data points are sorted by keys in ascending order, you can set alreadySorted to true, to improve performance by saving a sorting run.

See also: addData

◆ setData() [2/2]

void QCPStatisticalBox::setData ( QSharedPointer< QCPStatisticalBoxDataContainer > data )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.Replaces the current data container with the provided data container.

Since a QSharedPointer is used, multiple QCPStatisticalBoxes may share the same data container safely. Modifying the data in the container will then affect all statistical boxes that share the container. Sharing can be achieved by simply exchanging the data containers wrapped in shared pointers:

If you do not wish to share containers, but create a copy from an existing container, rather use the QCPDataContainer<DataType>::set method on the statistical box data container directly:

See also: addData

◆ setOutlierStyle()

void QCPStatisticalBox::setOutlierStyle ( const QCPScatterStyle & style )

Sets the appearance of the outlier data points.

Outliers can be specified with the method addData(double key, double minimum, double lowerQuartile, double median, double upperQuartile, double maximum, const QVector<double> &outliers)

◆ setWhiskerAntialiased()

void QCPStatisticalBox::setWhiskerAntialiased ( bool enabled )

Sets whether the statistical boxes whiskers are drawn with antialiasing or not.

Note that antialiasing settings may be overridden by QCustomPlot::setAntialiasedElements and QCustomPlot::setNotAntialiasedElements.

◆ setWhiskerBarPen()

void QCPStatisticalBox::setWhiskerBarPen ( const QPen & pen )

Sets the pen used for drawing the whisker bars.

Those are the lines parallel to the key axis at each end of the whisker backbone.

Whiskers are the lines which reach from the upper quartile to the maximum, and from the lower quartile to the minimum.

See also: setWhiskerPen

◆ setWhiskerPen()

void QCPStatisticalBox::setWhiskerPen ( const QPen & pen )

Sets the pen used for drawing the whisker backbone.

Whiskers are the lines which reach from the upper quartile to the maximum, and from the lower quartile to the minimum.

Make sure to set the capStyle of the passed pen to Qt::FlatCap. Otherwise the backbone line might exceed the whisker bars by a few pixels due to the pen cap being not perfectly flat.

See also: setWhiskerBarPen

◆ setWhiskerWidth()

void QCPStatisticalBox::setWhiskerWidth ( double width )

Sets the width of the whiskers in key coordinates.

Whiskers are the lines which reach from the upper quartile to the maximum, and from the lower quartile to the minimum.

See also: setWidth

◆ setWidth()

void QCPStatisticalBox::setWidth ( double width )

Sets the width of the boxes in key coordinates.

See also: setWhiskerWidth

The documentation for this class was generated from the following files:

qcustomplot.h
qcustomplot.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Changing the appearance

Usage

Constructor & Destructor Documentation

◆ QCPStatisticalBox()

Member Function Documentation

◆ addData() [1/2]

◆ addData() [2/2]

◆ data()

◆ draw()

◆ drawLegendIcon()

◆ drawStatisticalBox()

◆ getKeyRange()

◆ getValueRange()

◆ selectTest()

◆ selectTestRect()

◆ setData() [1/2]

◆ setData() [2/2]

◆ setOutlierStyle()

◆ setWhiskerAntialiased()

◆ setWhiskerBarPen()

◆ setWhiskerPen()

◆ setWhiskerWidth()

◆ setWidth()
